一、WebVirtMgr 说明
WebVirtMgr特点
操作简单，易于使用
通过libvirt的API接口对kvm进行管理
提供对虚拟机生命周期管理
WebVirtMgr 功能
宿主机管理支持以下功能
CPU利用率
内存利用率
网络资源池管理
存储资源池管理
虚拟机镜像
虚拟机克隆
快照管理
日志管理
虚机迁移
虚拟机管理支持以下功能
CPU利用率
内存利用率
光盘管理
关/开/暂停虚拟机
安装虚拟机
VNC console连接
创建快照
二、安装kvm虚拟环境
1、系统环境
CentOS Linux release 7.2.1511 selinx 关闭
2、安装依赖包
# yum -y install epel-release
# yum install qemu-kvm libvirt libvirt-python libguestfs-tools virt-install virt-manager python-virtinst libvirt-client virt-viewer
# systemctl enable libvirtd && systemctl start libvirtd
# ln -s /usr/libexec/qemu-kvm /usr/bin/qemu-kvm
3、 配置网桥
# cd /etc/sysconfig/network-scripts/
# cp ifcfg-em1 ifcfg-br0
# cat ifcfg-em1
TYPE=Ethernet
BOOTPROTO=static
NAME=em1
DEVICE=em1
ONBOOT=yes
NM_CONTROLLED=no
BRIDGE=br0
# cat ifcfg-br0
TYPE=Bridge
BOOTPROTO=static
DEFROUTE=yes
PEERDNS=yes
PEERROUTES=yes
IPV4_FAILURE_FATAL=no
NM_CONTROLLED=no
NAME=br0
DEVICE=br0
ONBOOT=yes
IPADDR=192.168.1.11
NETMASK=255.255.255.0
GATEWAY=192.168.1.1
DNS1=114.114.114.114
# /etc/init.d/network restart
4、关闭虚拟网卡virtbr0
# virsh net-destroy default
# virsh net-undefine default
# systemctl restart libvirtd
三、安装WebVirtMg
1、安装依赖包
# yum -y install git python-pip libvirt-python libxml2-python python-websockify supervisor nginx python-sqlite2 novnc
2、下载WebVirtMgr
# git clone git://github.com/retspen/webvirtmgr.git
# cd webvirtmgr
# pip install -r requirements.txt
# ./manage.py syncdb // 初始化
…………
…………
You just installed Django’s auth system, which means you don’t have any superusers defined.
Would you like to create one now? (yes/no): yes
Username (leave blank to use ‘root’): admin
Email address: admin@zhl123.com
Password:*********
Password (again):*********
# ./manage.py collectstatic // 生成配置文件
3、配置WebVirtMgr启动
# vim /etc/supervisord.conf // 在文件末尾添加
[program:webvirtmgr]
command=/usr/bin/python /usr/share/nginx/html/webvirtmgr/manage.py run_gunicorn -c /usr/share/nginx/html/webvirtmgr/conf/gunicorn.conf.py // 启动8000端口
directory=/usr/share/nginx/html/webvirtmgr
autostart=true
autorestart=true
logfile=/var/log/supervisor/webvirtmgr.log
log_stderr=true
user=nginx
[program:webvirtmgr-console]
command=/usr/bin/python /usr/share/nginx/html/webvirtmgr/console/webvirtmgr-console //启动 vnc 6080端口
directory=/usr/share/nginx/html/webvirtmgr
autostart=true
autorestart=true
stdout_logfile=/var/log/supervisor/webvirtmgr-console.log
redirect_stderr=true
user=nginx
# systemctl restart supervisord && systemctl enable supervisord
4、拷贝web到nginx目录
# mv webvirtmgr /usr/share/nginx/html/
# chown -R nginx:nginx /usr/share/nginx/html/* -R
5、配置nginx
server {
listen 80 default_server;
listen [::]:80 default_server;
server_name _;
root /usr/share/nginx/html/webvirtmgr;
root /usr/share/nginx/html/webvirtmgr;
location / {
proxy_pass http://127.0.0.1:8000;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-for $proxy_add_x_forwarded_for;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Forwarded-Proto $remote_addr;
proxy_connect_timeout 600;
proxy_read_timeout 600;
proxy_send_timeout 600;
client_max_body_size 1024M;
}
location /static/ {
root /usr/share/nginx/html/webvirtmgr;
expires max;
}
}
# systemctl start nginx && systemctl enable nginx
6、配置ssh密钥
# ssh-keygen -t rsa // 生成公钥
# ssh-copy-id 192.168.1.11

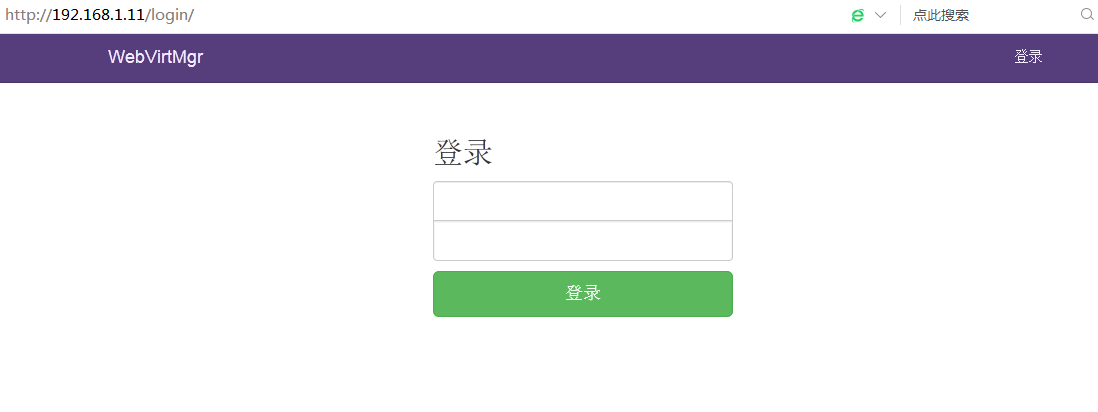

7、访问WebVirtMg
8、配置libvirtd远程TCP 连接
1）修改文件/etc/sysconfig/libvirtd，用来启用tcp的端口
# cat /etc/sysconfig/libvirtd
……..
LIBVIRTD_CONFIG=/etc/libvirt/libvirtd.conf
LIBVIRTD_ARGS=”–listen”
2)修改文件/etc/libvirt/libvirtd.conf
vim /etc/libvirt/libvirtd.conf
listen_tls = 0
listen_tcp = 1
tcp_port = “16509”
listen_addr = “0.0.0.0”
auth_tcp = “none”
3)重启 libvirtd
# systemctl restart libvirtd.service

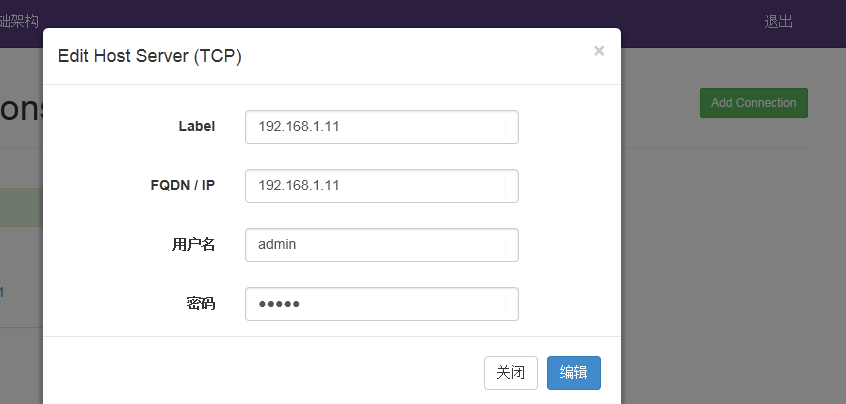

9、添加主机
